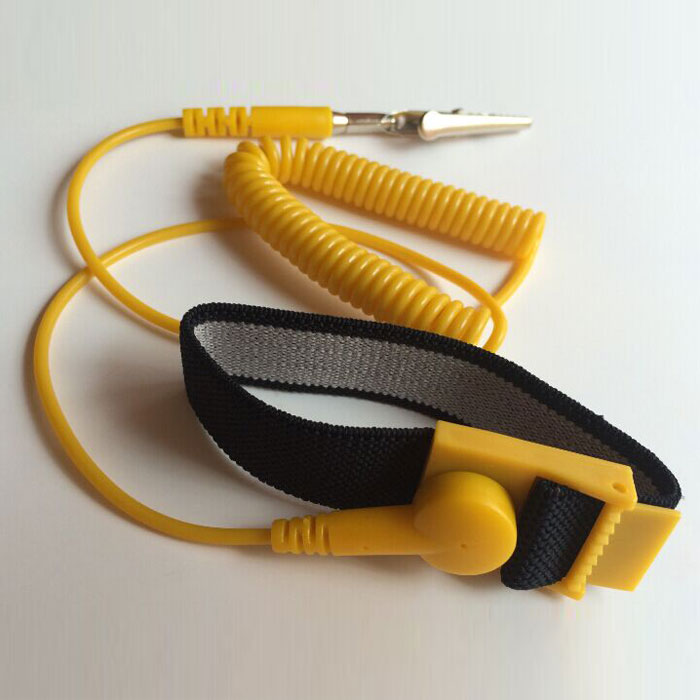

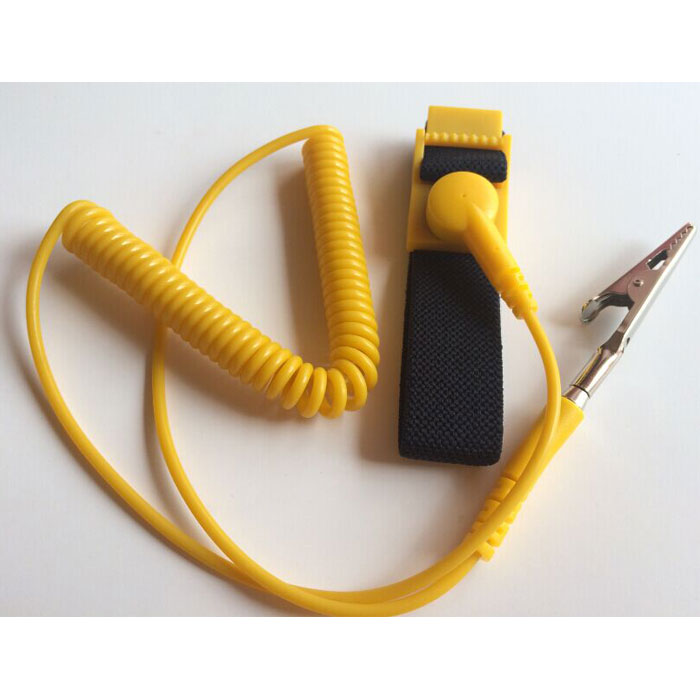

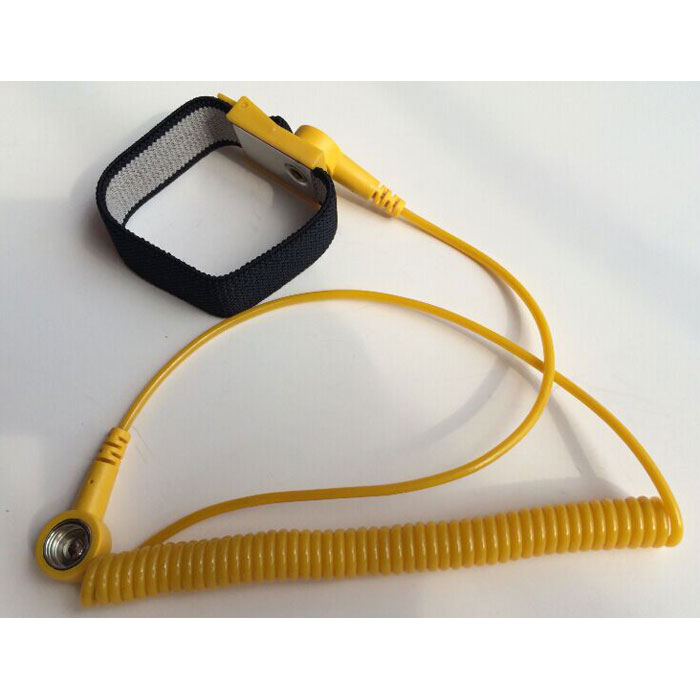

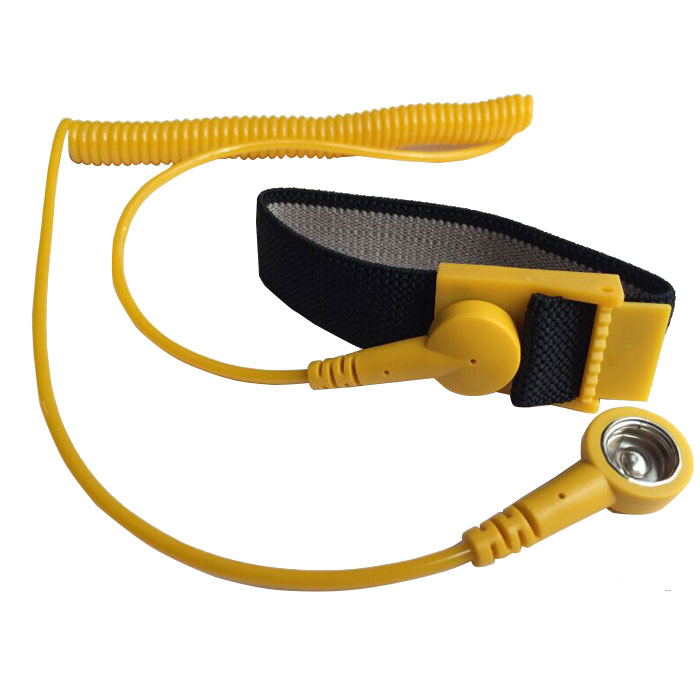

ESD wrist strap

Click to zoom in

Description:

The static discharge or ESD can damage your electronic components or circuits by the generation of a sudden electricity when differently-charged objects are brought close together. This wrist strap will help you to protect these components by grounding.
It has a nice elastic band with plenty more room for the largest of hands, and also caters for those with more dainty limbs by using cam buckle.

Features

* Band: soft woven fabric
* Band color: dark blue
* Band length: 19.5cm, 22cm, other length are on request.
* Crocheted conductive thread for conductivity.
* Can be adjusted by using cam buckle.
* Allows the skin to breathe & is comfortable to wear.
* 360 degree conductive contact around the wrist, providing maximum skin contact
* Back plate: stainless steel, yellow ABS
* Snap size: 4mm, 7mm, 10mm
* Cord: polyurethane, has built in 1 MΩ resistor
* Cord color: yellow
* Cord length: 1.8m, 2.4m, 3.6m, other length are on request.
* Cord diameter: 2.05mm, 2.4mm, 2.5mm, other diameter are on request.
* Style: stud – clip, stud - stud
* Coil insulation offers excellent coil memory.

Description:

CodeStyleBand colorBand lengthCord colorCord lengthCord diameterSnap
CL9058Stud - clipDark blue19.5 cmYellow1.8 m2.4 m10mm
CL9059Stud – studDark blue19.5 cmYellow1.8 m2.4 m10mm
