Description:

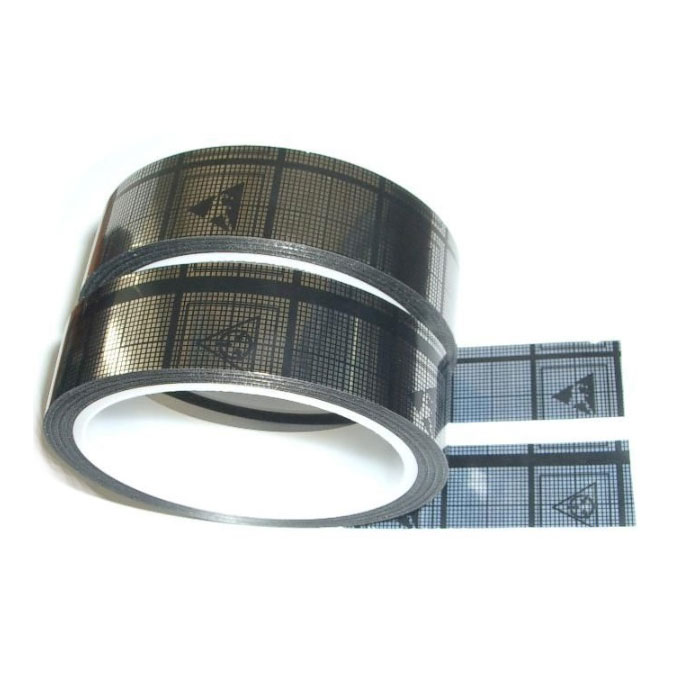

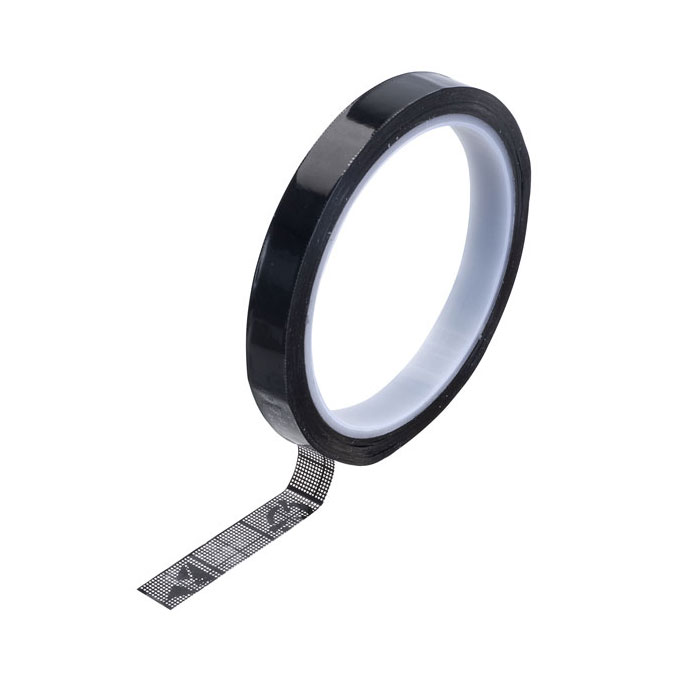

Antistatic grid tape with a charge decay of <.014 seconds, silicone free, low residue with a self adhesive backing and static dissipative surface. It can be used in a variety of forms. It’s most common usages are for electromagnetic interference (EMI) shielding and covering pins, connectors and plugs on electronic equipment during storage or transportation.
Features
* Film: OPP
* Glue: acrylic adhesive
* Surface resistance: 106~1011Ω
* Surfaces low-tribocharg(100V) at 50% RH
* Heat resistance: 60°C for 30mins, 80°C for 10mins
* No silicone (adhesive, film backing, release material)
* Non-corrosive
* Total thickness: 0.04mm, 0.06mm, 0.08mm, 0.11mm
* Widths: 10, 20, 30, 40, 50, 500（mm）
* Roll length: 36m
* Plastic core, inner diameter: 76mm
* Color: Black, Brown
Storage:
* Tapes should be stored in a dry, well ventilated room with a reasonably consistent temperature of 20°C and be protected from exposure to direct sunlight.
* Tape should not be stored in ultraviolet sunlight, moisture, or heat.
* Tape over one year old should be evaluated by the user to determine acceptability for the user’s application.
