ESD warning tape

Click to zoom in

Description:

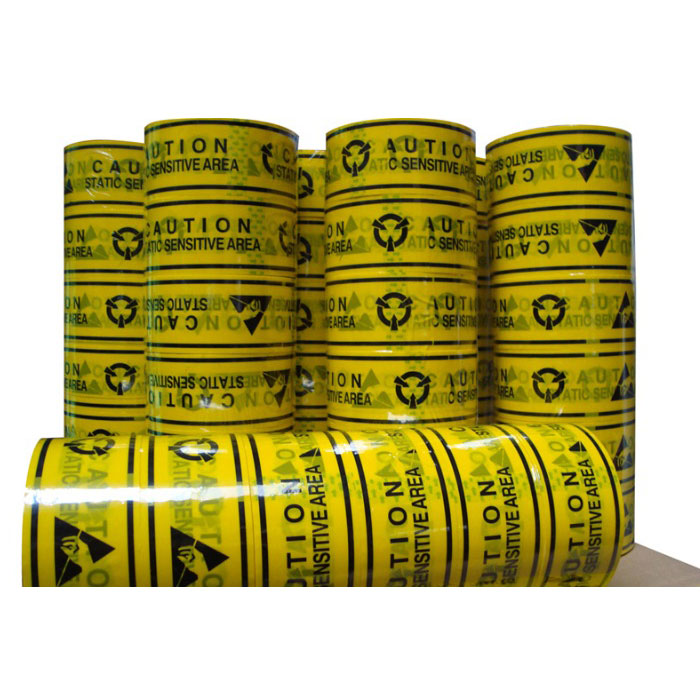

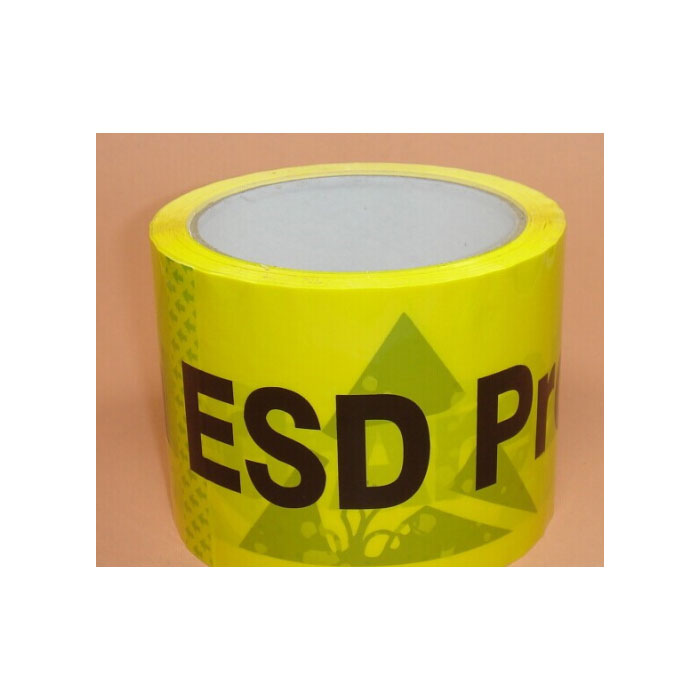

A conventional printed ESD warning self-adhesive PVC tape suitable for sealing outer cartons. The tape is yellow and is printed in black with the ESD hand-in-triangle logo.

Features

* Film: PVC
* Acrylic gum adhesive
* Color: Yellow, black text and ESD logo
* Total thickness: 0.12mm, 0.15mm, other thickness are on request.
* Width: 45,48,50,60 (mm), length: 10,13,15,16,17,20,22,25,33(m), other sizes are on request.
* Print: 2 designs as picture, other designs are on request.
* The tape is tribocharging and is not suitable for use in an ESD protection area
* Suitable for sealing secondary packaging of electrostatic sensitive devices such as cardboard boxes
Storage:
* Tapes should be stored in a dry, well ventilated room with a reasonably consistent temperature of 20°C and be protected from exposure to direct sunlight.
* Tape should not be stored in ultraviolet sunlight, moisture, or heat.
* Tape over one year old should be evaluated by the user to determine acceptability for the user’s application.

Description:

Code Design W x L Thickness Peeling force Tensile strength Elongation rate Max temperature
CL9165 1/2 45/48/50/60mmx33m 0.15mm 1.5 N/cm 23N/cm 150% 60°C
