Description:

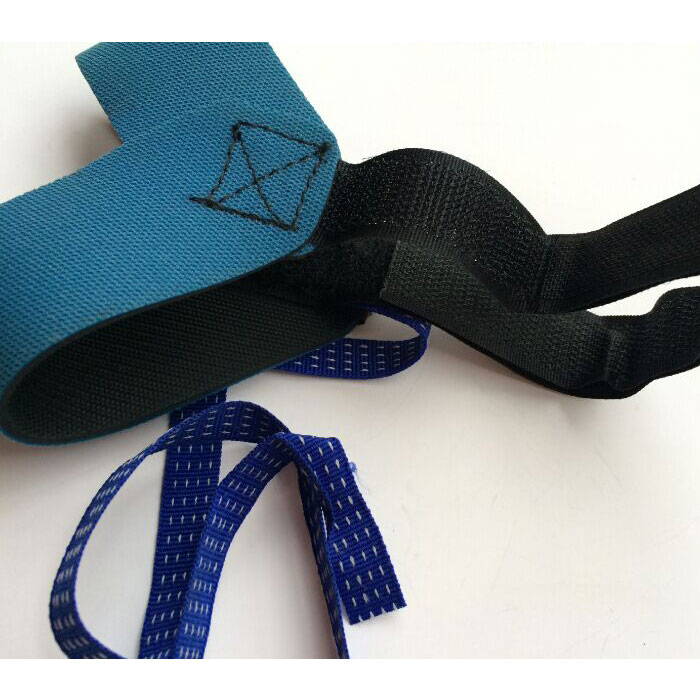

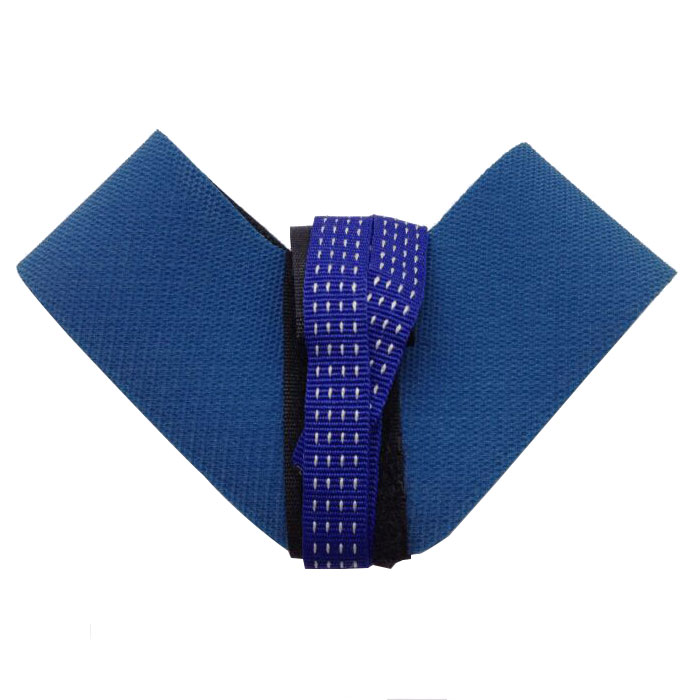

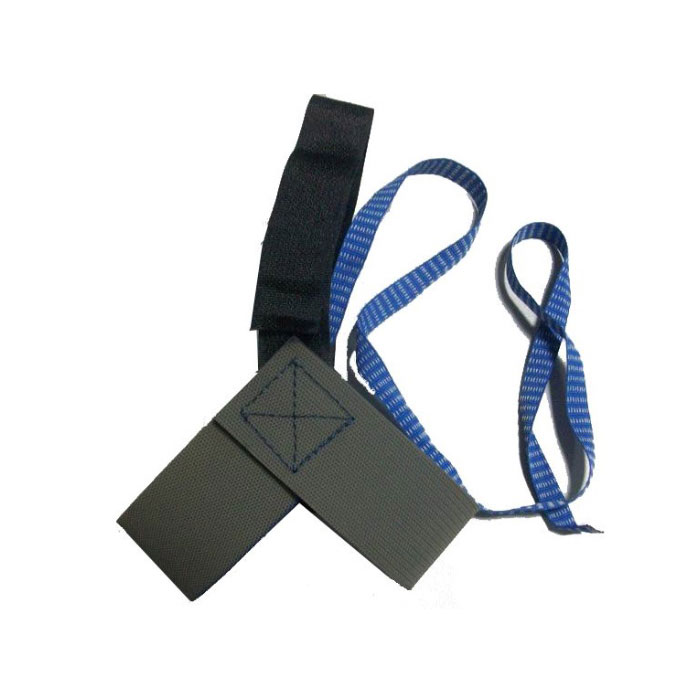

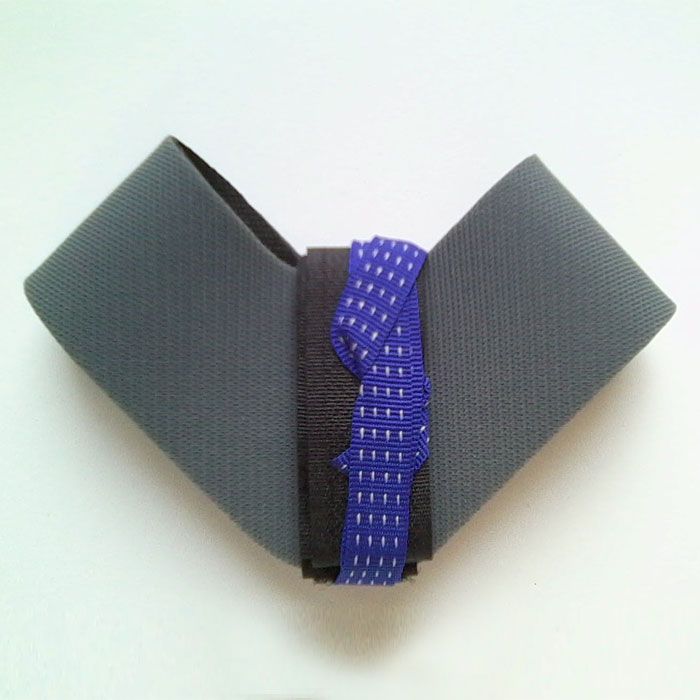

ESD Heel Grounders are constructed from antistatic/ESD mat and feature a closure system with conductive ribbon. These heel grounders connect the person wearing them to ground via a proper floor mat or flooring material. Wearing the conductive ribbon inside the shoe or sock assures proper electrical contact with the user. The ribbon connects to the conductive rubber to complete the circuit between the operator and the static controlled floor or mat. A buried 1 MΩ resistor is standard. Heel grounders are worn on both feet to provide consistent grounding while in motion.
Features
* Material: natural rubber, pass ROHS, no harmful material, 2 layers
* Conductive Surface Resistivity: 103~105
* Dissipative Surface Resistivity: 106~109
* Resistor: 1 MΩ
* Style: cup style, anti-slip
* Color: Blue+black, Grey+black, Green+black
* Closure: velcro, elastic velcro, “D” ring, or quick clasp
* Conductive ribbon: 40, 60cm, other length on request.
* Ribbon color: blue, grey
* Non-marking on floor
* Reversible, extend life span
* Easy on and off action without changing adjustment
* Alternative to the wrist strap system for staff on the move.
