Description:

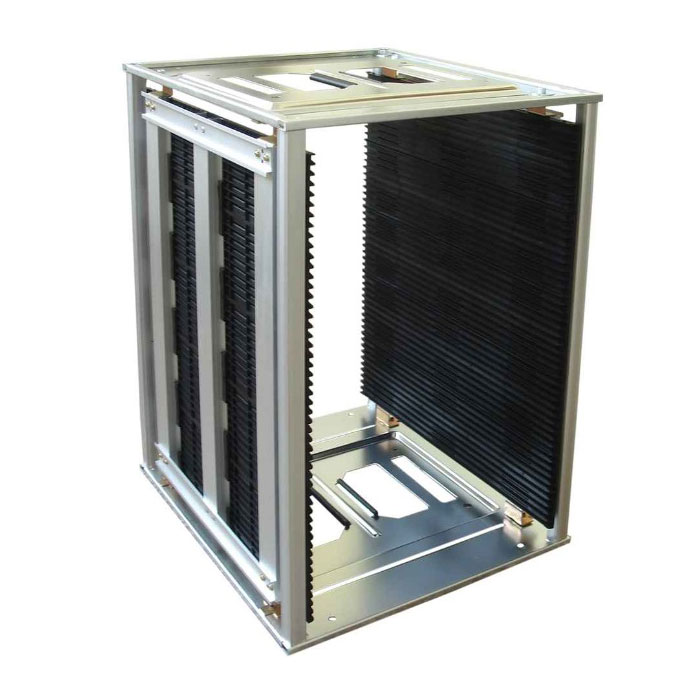

SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB. Usually with antistatic plastic base or stainless metal base. There are screw and gear adjustment, screw adjustment type for long-term PCB width set up, gear adjustment for frequent PCB width adjust. Common type (80℃) and heat-resistant type(120℃, 230℃) are available.
Features
Exterior Size: 355×320×263mm
PCB slots: 20pcs
PCB Size: 355×（50--250）MM
Side guide slot: length 355mm, width 5.5mm, depth 3.5mm, pitch 10m
Base board material: Metal, thickness≤1.2mm
Surface treatment of base board: anti finger print
Side board material: permanent antistatic BMC
Surface resistance: 106~109 Ω.
Heat resistance of side board: 230 degrees Celsius
Heat resistance of whole rack: 230 degrees Celsius
Adjust system: by screw (Allowed to be put in aging chamber)
Lock: screw
Screw material: #45 carbon steel plated with zink
Pillar material: aluminum alloy
Round pillar material: aluminum alloy
