Description:

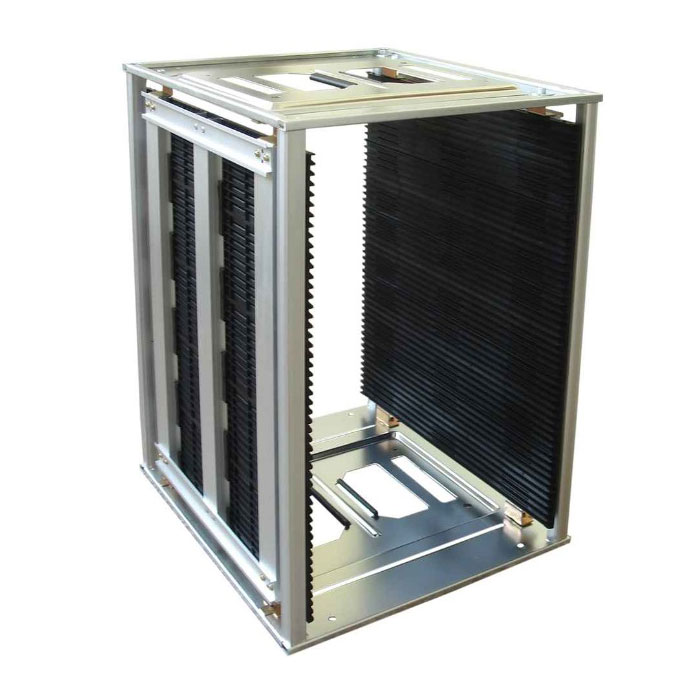

SMT magazine rack is designed for the manufacture, assembly, storage and transfer of PCB. Usually with antistatic plastic base or stainless metal base. There are screw and gear adjustment, screw adjustment type for long-term PCB width set up, gear adjustment for frequent PCB width adjust. Common type (80℃) and heat-resistant type(120℃, 230℃) are available.
Features
* Exterior Size: 460×400×563mm
* PCB slots: 50pcs
* PCB Size: 460×（50--330）MM
* Side guide slot: length 460mm, width 5.5mm, depth 3.5mm, pitch 10m
* Base board material: Metal, thickness≤1.2mm
* Surface treatment of base board: anti finger print
* Side board material: permanent antistatic PPE
* Surface resistance: 106~109 Ω.
* Heat resistance of side board: 120 degrees Celsius
* Heat resistance of whole rack: 120 degrees Celsius
* Adjust system: by screw (Allowed to be put in aging chamber)
* Lock: screw
* Screw material: #45 carbon steel plated with zink
* Pillar material: aluminum alloy
* Round pillar material: aluminum alloy
